easi-joist® Metal Joist Design & Manufacturing in the South East

Easi-joists

Easi-Joist are a metal-web system using TR26 parallel chords and a metal-web design. The metal web comes in the form of a plate design using Wolf systems innovative design. Wolf’s design is patented, precision engineered and is the strongest available on the market.

Easi-joist offer an advance load bearing capacity with their clear span design, use less material and reduce overall build costs which maximises your competitive advantage. Easi-Joists outperform Standard Carcassing Joists and beams.

• Easi-Joist can be positioned at any angle between 0 and 90 degrees in many different situations – this allows easier installation of services, enabling Plumbing, MME and electrical cables to be ducted through with no drilling.
• Easi-Joist have a high acoustics and fire performance benefiting multiple occupancy buildings and party wall construction
• Easi-joist can be assembled into floor cassettes for Timber frame

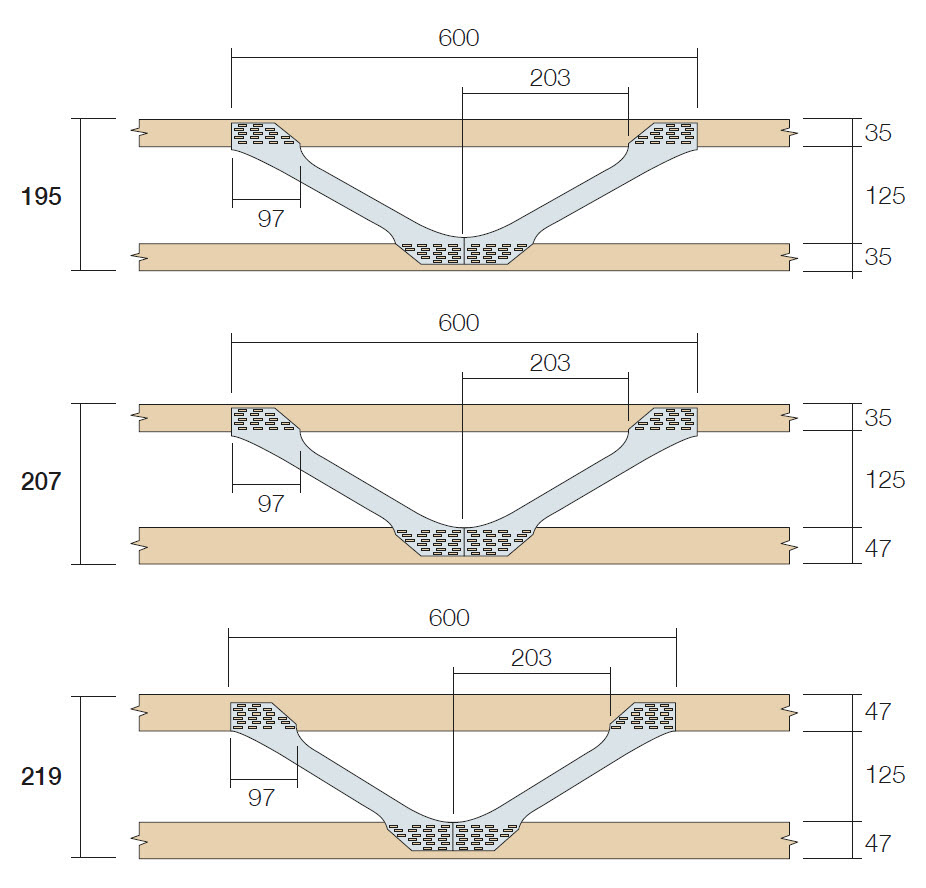

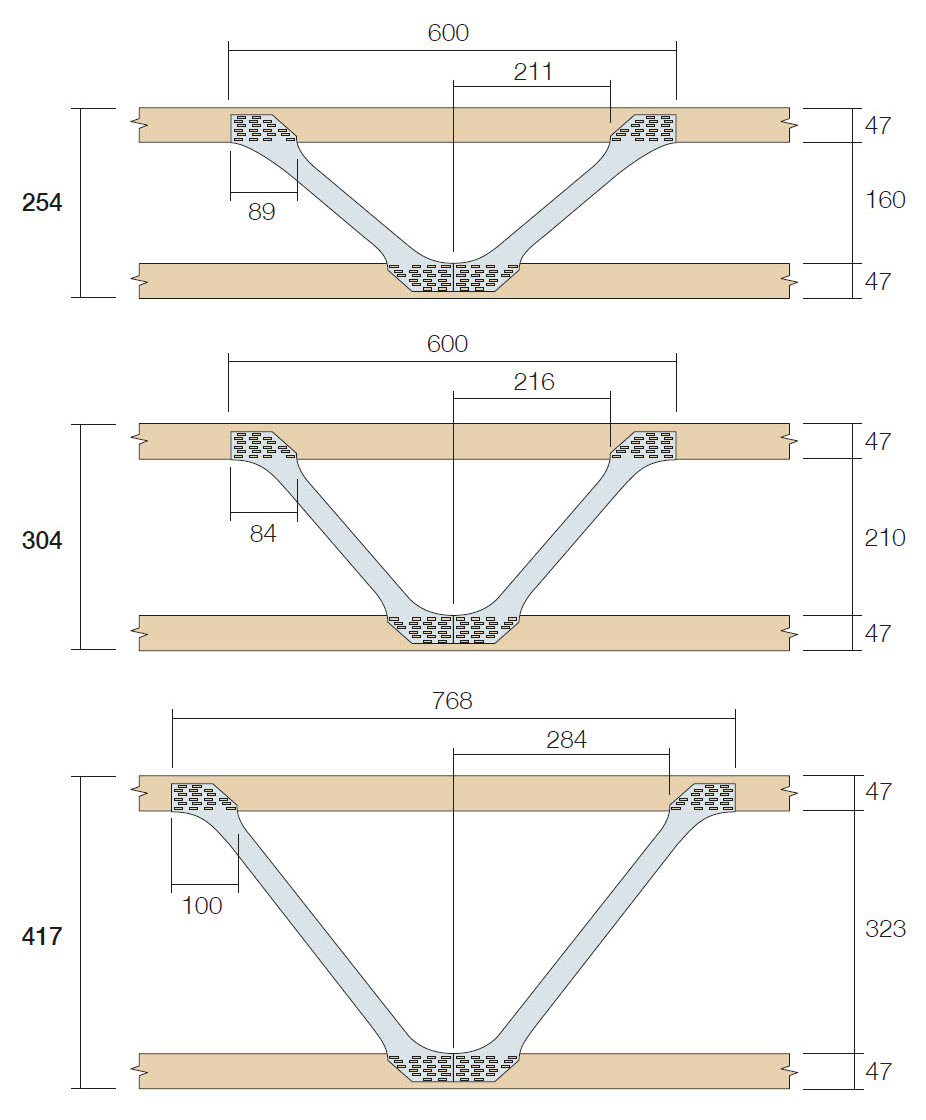

• Factory manufactured and made to measure easi-joists are available to match depths of solid joists from 195mm through to 417mm. All ends are trimmable to facilitate installation where bearing is inconsistent
• Designing Voids in Joists – The provision for larger services can be accommodated at design stage using the easi-joist software. This allows accurate placement of MME and drainage for specific service runs.

At Bartrams’ we use Wolf Systems innovative Revit based software to produce detailed drawings to allow our contractors a seamless installation process. We provide full drawings with each design.

Wolf systems have over 45 years experience and are members of the TRA, Trada, STA (Structural Timber Association) and the Irish equivalent (ITFMA). The product is manufactured on our 5 acre manufacturing facility with our delivery service covering most of the UK. At Bartram, we are also proud Gold Members of the Structural Timber Association (STA). Please contact us for any joist requirements either by telephone 01767 699699 or email sales@bartram.co.uk.

Our Accreditations & Associations

Downloads

Benefits of easi-joist®

Our easi-joist® solutions have some amazing benefits

Open Web Design

Allows for easier and more useful installation of services

Lightweight

Smaller timber sections and lightweight metal webs mean easier control.

Handling and Installation

A wide bearing offers rapid setting out and better-quality joist stability along with easier fixing of decking.

Long-term Stability

Significantly reduced shrinkage delivers a quieter floor system.

Reduced site wastage

Factory-manufactured metal joists reduce site modifications and wastage.

Improved sound and vibration

Strongback installation significantly enhances overall floor performance.

Design

Integrated software ensures precise design and production of easi-joist®.
